Kabel NYAF – Single Core
Jual Kabel NYAF – Single Core
PT. Belltronic Indonesia menjual kabel Jembo tipe NYAF (CU/PVC) or BV – Low Voltage dengan harga yang kompetitif, murah, kualitas terbaik ekspor, kabel terbaik dan sudah dipercaya lebih dari 50 tahun.
Kami juga menjual beragam varian kabel lainnya sesuai dengan kebutuhan Anda
Harga kabel NYAF – Single Core
Untuk informasi harga kabel NYAF (CU/PVC) or BV – Low Voltage terbaru dan diskon produk, silakan menghubungi tim sales dengan live chat WhatsApp yang telah tersedia fast respon
Atau bisa kunjungi store offline / kantor offline kami di halaman Hubungi Kami
Price range: Rp 81.363 through Rp 77.011.800
Shipping calculated at checkout.
Kabel NYAF
Kabel NYAF adalah kabel fleksibel yang dirancang dengan inti tembaga serabut, sehingga menawarkan tingkat kelenturan yang tinggi. Kabel ini dilapisi dengan isolasi berbahan PVC yang memberikan perlindungan terhadap arus listrik. Dengan tegangan nominal 450/750 V, kabel NYAF cocok untuk instalasi permanen yang diletakkan di dalam pipa penghantar yang tertanam di dinding atau plester.
Jenis kabel ini sering digunakan dalam instalasi panel listrik yang membutuhkan fleksibilitas ekstra, memungkinkan penanganan yang mudah dan pemasangan yang presisi. Berkat sifatnya yang fleksibel dan tahan lama, kabel NYAF menjadi pilihan ideal untuk berbagai aplikasi instalasi listrik.
Symbol
:
CU/PVC or BV – (Copper Conductor, and PVC Insulated)
Specification
:
SPLN 42-3 : 1992
SNI 04-6629.3.2006
IEC 60227 IEC 02
IEC 60227 IEC 06
Other specification are available on request
Size Range
:
0.75 mm2 s/d 1 mm2 *
1.5 mm2 s/d 240 mm2
Rated Voltage
:
300/500 Volt *
450/750 Volt
Identification of Cores
:
• Yellow with Green Stripe (Y/G)
• Yellow
• Black
• Blue
• Red

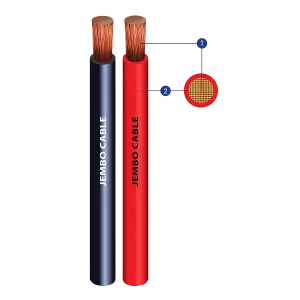

Construction
:
1. Conductor : Flexible Copper Wire
2. Insulation : Extruded PVC
Application
:
Permanent installation in conduit or exposed wiring in dry location, for control cables or grounding cables and connecting cable in distribution cabinets installations that require high flexibility.
Special Features on Request
:
• Heat Resistant
| Conductor | Insulation | Approx Net. Weight | Standard Length | Packing | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Conductor | Insulation | Approx Net. Weight of Cable | ||||||||||
| Nom. Cross Section Area | Max. Diameter of Wire | Nom. Thickness | Approx Overall Diameter | Approx Net. Weight of Cable | Standard Length | Packing | ||||||
| mm² | - | mm | mm | kg/km | m | - | ||||||
| 300/500 V : Flexible Copper Conductor, PVC Insulated | ||||||||||||
| 0.5 | 0.21 | 0.6 | 2.1 | 8.2 | 100 | Coil | ||||||
| 0.75 | 0.21 | 0.6 | 2.3 | 10.8 | 100 | Coil | ||||||
| 1 | 0.31 | 0.6 | 2.5 | 13.4 | 100 | Coil | ||||||
| 450/750 V : Flexible Copper Conductor, PVC Insulated | ||||||||||||
| 1.5 | 0.26 | 0.7 | 2.9 | 19 | 100 | Coil | ||||||
| 2.5 | 0.26 | 0.8 | 3.6 | 31 | 100 | Coil | ||||||
| 4 | 0.31 | 0.8 | 4.1 | 69 | 100 | Coil | ||||||
| 6 | 0.31 | 0.8 | 4.8 | 65 | 100 | Coil | ||||||
| 10 | 0.41 | 1.0 | 6.0 | 105 | 100 | Coil | ||||||
| 16 | 0.41 | 1.0 | 7.4 | 160 | 1000 | Drum | ||||||
| 25 | 0.41 | 1.2 | 9.0 | 239 | 1000 | Drum | ||||||
| 35 | 0.41 | 1.2 | 10.2 | 327 | 1000 | Drum | ||||||
| 50 | 0.41 | 1.4 | 12.3 | 470 | 1000 | Drum | ||||||
| 70 | 0.51 | 1.4 | 15.3 | 676 | 1000 | Drum | ||||||
| 95 | 0.51 | 1.6 | 17.4 | 885 | 1000 | Drum | ||||||
| 120 | 0.51 | 1.6 | 18.7 | 1116 | 1000 | Drum | ||||||
| 150 | 0.51 | 1.8 | 20.9 | 1383 | 1000 | Drum | ||||||
| 185 | 0.51 | 2.0 | 23.6 | 1697 | 1000 | Drum | ||||||
| 240 | 0.51 | 2.2 | 26.6 | 2227 | 1000 | Drum | ||||||
| Conductor | Current Carrying Capacity at 30°C | Short Circuit Current at 1 Sec. | AC Voltage Test | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Conductor | Current Carrying Capacity at 30°C | Short Circuit Current at 1 Sec. | ||||||||||
| Nom. Cross Section Area | Max. DC Resistance at 20°C | Min. Insulation Resistance at 70°C | In Pipe | in Air | Short Circuit Current at 1 Sec. | AC Voltage Test | ||||||
| mm² | Ohm/km | M.Ohm.km | Ampere | kA | kV/5 min | |||||||
| 300/500 V : Flexible Copper Conductor, PVC Insulated | ||||||||||||
| 0.5 | 39 | 0.013 | 2.5 | - | 0.05 | 2.0 | ||||||
| 0.75 | 26 | 0.011 | 7 | 15 | 0.08 | 2.0 | ||||||
| 1 | 9.5 | 0.010 | 11 | 19 | 0.21 | 2.0 | ||||||
| 450/750 V : Flexible Copper Conductor, PVC Insulated | ||||||||||||
| 1.5 | 13.3 | 0.010 | 15 | 24 | 0.15 | 2.5 | ||||||
| 2.5 | 7.98 | 0.009 | 20 | 32 | 0.25 | 2.5 | ||||||
| 4 | 4.95 | 0.0070 | 25 | 42 | 0.41 | 2.5 | ||||||
| 6 | 3.3 | 0.0060 | 33 | 54 | 0.61 | 2.5 | ||||||
| 10 | 1.91 | 0.0056 | 45 | 73 | 1.05 | 2.5 | ||||||
| 16 | 1.21 | 0.0046 | 61 | 98 | 1.66 | 2.5 | ||||||
| 25 | 0.78 | 0.0044 | 83 | 129 | 2.58 | 2.5 | ||||||
| 35 | 0.554 | 0.0038 | 103 | 158 | 3.63 | 2.5 | ||||||
| 50 | 0.387 | 0.0037 | 132 | 198 | 5.19 | 2.5 | ||||||
| 70 | 0.272 | 0.0032 | 165 | 245 | 7.38 | 2.5 | ||||||
| 95 | 0.206 | 0.0032 | 197 | 292 | 9.75 | 2.5 | ||||||
| 120 | 0.161 | 0.0029 | 235 | 344 | 12.48 | 2.5 | ||||||
| 150 | 0.129 | 0.0029 | - | 391 | 15.57 | 2.5 | ||||||
| 185 | 0.106 | 0.0029 | - | 448 | 18.95 | 2.5 | ||||||
| 240 | 0.0801 | 0.0028 | - | 528 | 25.08 | 2.5 | ||||||
