Kabel NYA – Single Core
Jual Kabel NYA
PT. Belltronic Indonesia menjual kabel Jembo tipe NYA (CU/PVC) or BV – 1 Core (Low Voltage) dengan harga yang kompetitif, murah, kualitas terbaik ekspor, kabel terbaik dan sudah dipercaya lebih dari 50 tahun.
Kami juga menjual beragam varian kabel lainnya sesuai dengan kebutuhan Anda
Harga kabel NYA
Untuk informasi harga kabel NYA (CU/PVC) or BV – 1 Core (Low Voltage) terbaru dan diskon produk, silakan menghubungi tim sales dengan live chat WhatsApp yang telah tersedia fast respon
Atau bisa kunjungi store offline / kantor offline kami di halaman Hubungi Kami
Price range: Rp 52.836 through Rp 80.219.700
Shipping calculated at checkout.
Kabel NYA
Kabel NYA adalah jenis kabel bertegangan rendah tanpa lapisan pelindung, menggunakan inti penghantar yang terbuat dari tembaga hasil proses anil (pemanasan dan pendinginan perlahan). Kabel ini dilapisi isolasi berbahan PVC dan memiliki tegangan nominal 450 V/750 V. Umumnya, kabel NYA digunakan untuk instalasi permanen di dalam pipa atau dalam kondisi terbuka di area kering. Pilihan warna inti kabel meliputi hijau-kuning, kuning, hitam, biru muda, dan merah.
Symbol
:
(CU/PVC) or BV
Specification
:
SNI 04-6629.3-2006,
IEC 60227-3 IEC 01
Other specification are available on request
Size Range
:
1.5mm2 s/d 400 mm2
Rated Voltage
:
450/750 Volt
Identification of Cores
:
Yellow with Green Stripe (Y/G)
Yellow
Black
Blue
Red

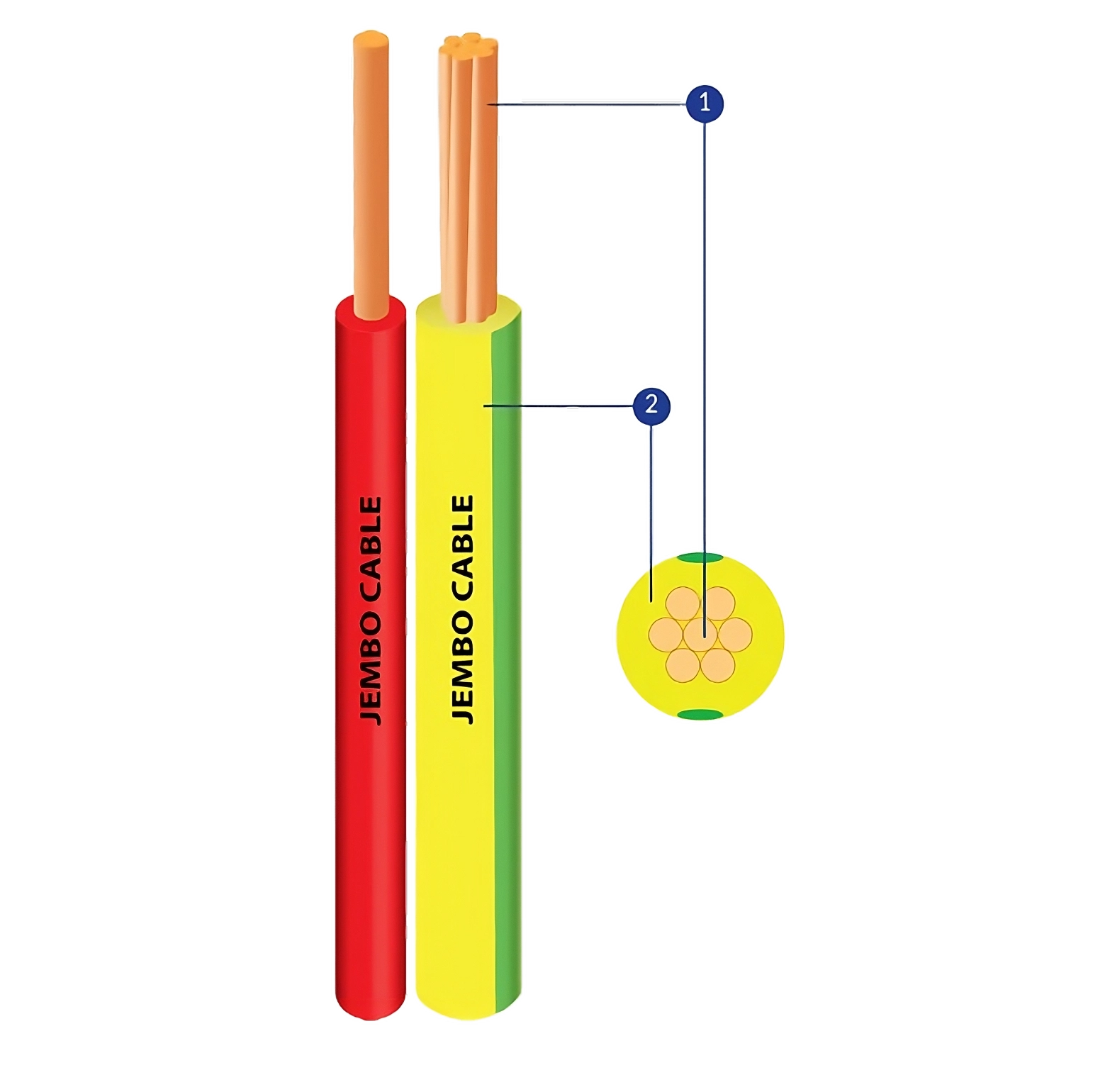

Construction
:
1. Annealed Copper – Class 1 (re), Class 2 (rm)
2. Extruded PVC Insulation
Application
:
Permanent installation in conduit or exposed wiring in dry location, also as house installation cables, grounding cables and as connecting cables in distribution cabinets (panels)
Special Features on Request
:
Heat Resistant
| Conductor | Insulation | Approx Weight of Cable | Standard Length | Packing | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Conductor | Insulation | |||||||||
| Nom. Cross Section Area | Construction | No. of Wire | Nom. Thickness | Approx. Diameter of Cable | Approx Weight of Cable | Standard Length | Packing | |||
| mm² | - | - | mm | mm | kg/km | m | - | |||
| 1.5 | re / rm | 1/7 | 0.7 | 2.8 & 3.0 | 2 | 100 | Coil | |||
| 2.5 | re / rm | 1/7 | 0.8 | 3.4 & 3.6 | 3 | 100 | Coil | |||
| 4 | re / rm | 1/7 | 0.8 | 3.8 & 4.1 | 4 | 100 | Coil | |||
| 6 | re / rm | 1/7 | 0.8 | 4.3 & 4.7 | 11 | 100 | Coil | |||
| 10 | re / rm | 1/7 | 1.0 | 5.5 & 6.0 | 11 | 100 | Coil | |||
| 16 | rm | 7 | 1.0 | 7.0 | 169 | 1000 | Drum | |||
| 25 | rm | 7 | 1.2 | 8.7 | 266 | 1000 | Drum | |||
| 35 | rm | 7 | 1.2 | 9.8 | 358 | 1000 | Drum | |||
| 50 | rm | 19 | 1.4 | 11.5 | 480 | 1000 | Drum | |||
| 70 | rm | 19 | 1.4 | 13.3 | 675 | 1000 | Drum | |||
| 95 | rm | 19 | 1.6 | 15.5 | 931 | 1000 | Drum | |||
| 120 | rm | 37 | 1.6 | 17.1 | 1153 | 1000 | Drum | |||
| 150 | rm | 37 | 1.8 | 19.0 | 1425 | 1000 | Drum | |||
| 185 | rm | 37 | 2.0 | 21.3 | 1781 | 1000 | Drum | |||
| 240 | rm | 61 | 2.2 | 24.2 | 2338 | 1000 | Drum | |||
| 300 | rm | 61 | 2.4 | 27.0 | 2916 | 1000 | Drum | |||
| 400 | rm | 61 | 2.6 | 30.4 | 3734 | 1000 | Drum | |||
| Conductor | Current Carrying Capacity at 30°C | Short Circuit Current at 1 Sec. | AC Voltage Test | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Conductor | Current Carrying Capacity at 30°C | Short Circuit Current at 1 Sec. | |||||||
| Nom. Cross Section Area | Max. DC Resistance at 20°C | Min. Insulation Resistance at 70°C | In Pipe | In Air | Short Circuit Current at 1 Sec. | AC Voltage Test | |||
| mm² | Ohm/km | M.Ohm.km | Ampere | kA | kV/5 min | ||||
| 1.5 | 12.1 | 0.011 | 15 | 24 | 0.17 | 2.5 | |||
| 2.5 | 7.41 | 0.010 | 20 | 32 | 0.27 | 2.5 | |||
| 4 | 4.61 | 0.0085 | 25 | 42 | 0.44 | 2.5 | |||
| 6 | 3.08 | 0.0070 | 33 | 54 | 0.65 | 2.5 | |||
| 10 | 1.83 | 0.0070 | 45 | 73 | 1.10 | 2.5 | |||
| 16 | 1.15 | 0.0050 | 61 | 98 | 1.75 | 2.5 | |||
| 25 | 0.727 | 0.0050 | 83 | 129 | 2.76 | 2.5 | |||
| 35 | 0.524 | 0.0043 | 103 | 158 | 3.83 | 2.5 | |||
| 50 | 0.387 | 0.0043 | 132 | 198 | 5.19 | 2.5 | |||
| 70 | 0.268 | 0.0035 | 165 | 245 | 7.49 | 2.5 | |||
| 95 | 0.193 | 0.0035 | 207 | 292 | 10.41 | 2.5 | |||
| 120 | 0.153 | 0.0032 | 235 | 344 | 13.13 | 2.5 | |||
| 150 | 0.124 | 0.0032 | - | 391 | 16.20 | 2.5 | |||
| 185 | 0.0991 | 0.0032 | - | 448 | 20.27 | 2.5 | |||
| 240 | 0.0754 | 0.0032 | - | 528 | 26.64 | 2.5 | |||
| 300 | 0.0601 | 0.0030 | - | 608 | 33.42 | 2.5 | |||
| 400 | 0.0470 | 0.0028 | - | 726 | 42.74 | 2.5 | |||
